LEAPER-56
Universal pocket size programmer for Eproms/Eeproms/Flash/Pld/Microcontrollers, with ZIF48 socket and USB connection












thumbnail_LEAPER-56





Description :

Introduction:
The LEAPER-56 is a pocket size universal programmer. It provides with 75MHz bandwidth and < ±2.5nS signal skew just in smart-phone size. The programming efficiency is much better than the other programmers on the market in any time and any condition. By letting your PC or laptop connect with LEAPER-56, it will perform your outstanding ability of development and debugging. You can easily have professional factory-level productivity.

Features:
Portable mini size. Without socket, only 136mm(L)* 90mm(W)* 20mm(H). You just need to connect with USB cable to use. No additional power supply.
Provide with DUT 75MHz bandwidth and < ±2.5nS signal skew. In addition to the high processing speed, you can verify whether the ICs processing frequency meets the specifications.
Via USB HUB, you can connect multiple LEAPER-56s to do gang programming. It makes development and mass production proficient.
Provide with DUT device pin checking and memory components ID verification. Ensure the best yield rate of processing.

Specification:
Device power signal
Logic signal level: 1.5V~6.0V,10mV
IOL, IOH current: 10mA
Logic signal frequency: 75MHz (3-5V), 60MHz (2.5V), 45MHz (1.8V), 25MHz (1.5V)
Signal skew: <±2.5nS (3-5V)
Clock frequency: 0Hz ~ 75MHz
VDD, VIO level: 1.5V~6.5V,10mV
IDD, IIO frequency: 400mA
VPP, VHH level: 1.5V~15.5V,20mV
IPP, IHH frequency: 150mA
Power consumption: 4W
Pin drivers: 48 Pin Uuiversal Pin Driver (Zero Inser ion Force)
DUT socket: DIP 48 ZIF
Dimension: 136(L) x 90(W) x 20(H) mm, Socket is not induded
Weight: 282g

PC System Requirements:
Operating system: Win 8 / Win 7 / Vista / XP (32bits & 64bits)
Processor: Pentium 4 above
Memory: 1GB RAM above
Hard disk: 500 MB above / buffer: 1GB above
Communication: USB 2.0 high speed
USB powere: Connect the cable with 2 USB port (600mA above)

Supported Devices:
NOR FLASH, SPI, EPROM, EEPROM, MPU, MCU, CPLD, NV-RAM, etc.

Supported File Formats:
Binary/Machine Code, Intel HEX,TEK HEX, Motorola HEX

Remarks:
Must use the USB cable from the standard package, and connect to the USB ports behind your PC. Besides please also connect it with 2 USB ports, or through the USB Hub (5V/1A)
When you need adapters to process the high-speed components, be sure to use good quality adapters. In order to have the best high-frequency process performance, the socket and DUT must keep good contact.

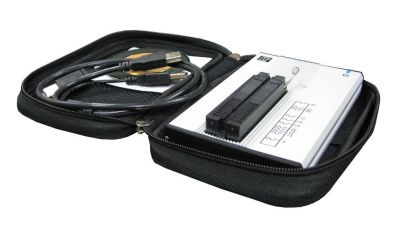

Standard Accessories:
Main unit x 1
Y-USB cable x1
CD (Included driver and user's manual)
Soft case

Optional Accessories:
PLCC, JLCC, SDIP, SOP, VSOP, SSOP, TSOP, TSSOP, QFP, PQFP, TQFP, VQFP, BGA, uBGA, SON, WSON, QFN (MLF)... .etc.
